Radiator for fan 120x120mm

By Boris Landoni on January 21, 2019

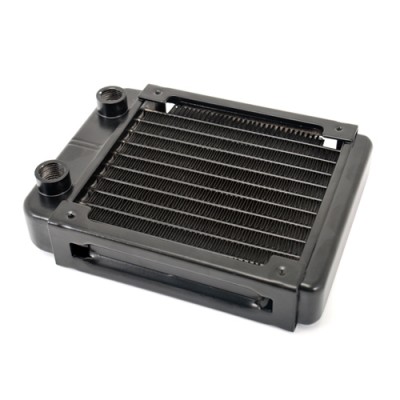

Water cooler to be used in combination with a 120×120 mm cooling fan.
Maximum dimensions (mm): 155,50×120,50×32,50.
The distance between fixing holes for the fan: 104 mm, the distance between water pipe connections: 67.50 mm, the internal diameter of fittings: 11 mm.

Ideal for 3D choco printer
Read more: Radiator for fan 120x120mm
