OpenStore: UNO board with ATmega328P and ATmega16U2

By on October 17, 2017
Pin It

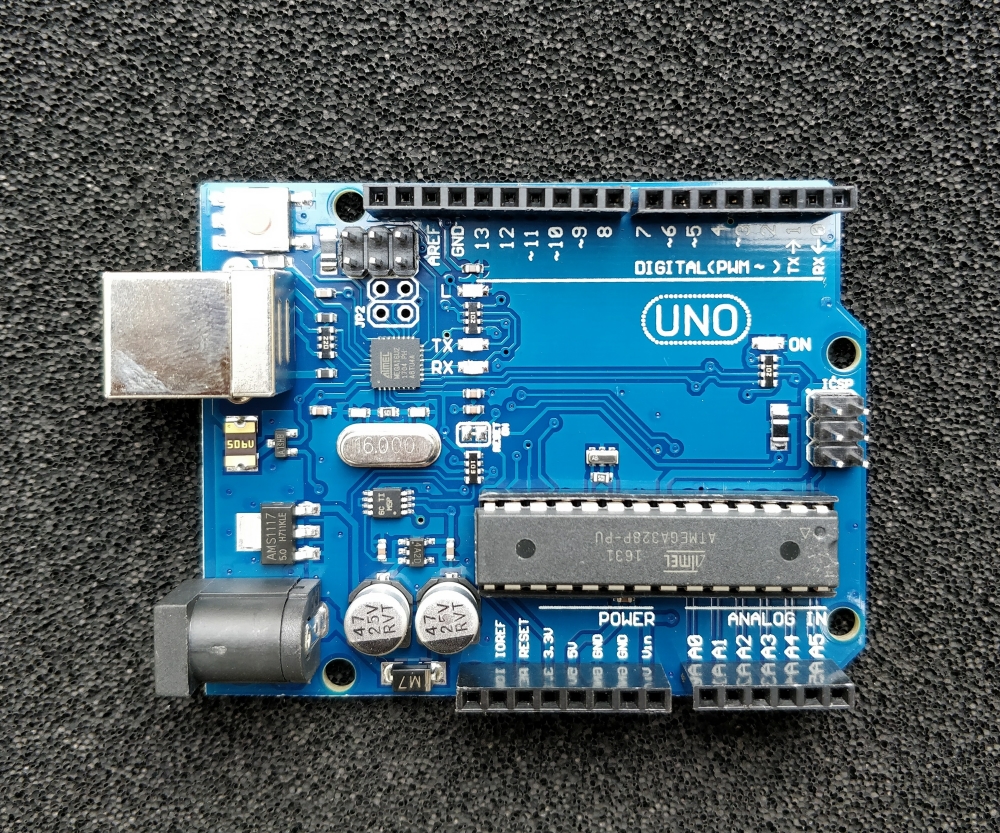

Available in our store the UNO board with ATmega328P and ATmega16U2.

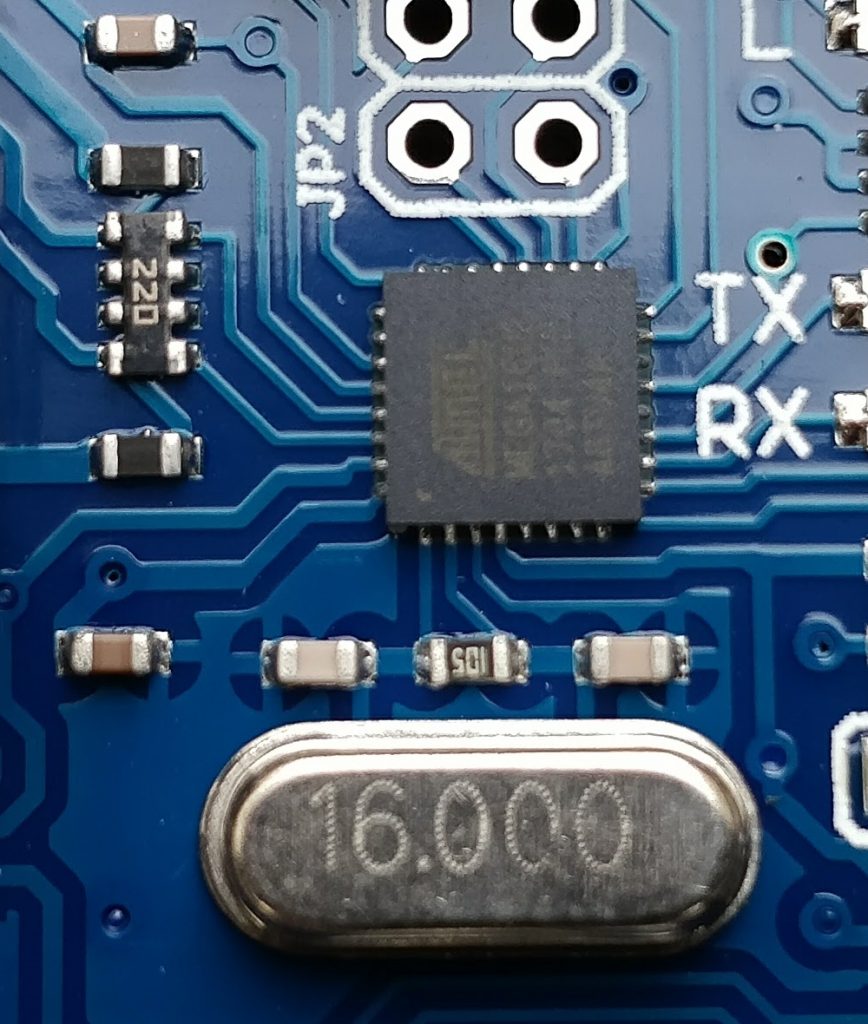

It features the ATmega16U2 programmed as a USB-to-serial converter to communicate with the IDE. This allows for faster transfer rates and more memory.

This board is fully compatible with the Arduino Uno board but with a cheaper price.

The ATmega328 is programmed with the bootloader and can be used with all our shield.





Technical features
  • Microcontroller ATmega328P
  • Operating Voltage 5V
  • Input Voltage (recommended) 7-12V
  • Input Voltage (limit) 6-20V
  • Digital I/O Pins 14 (of which 6 provide PWM output)
  • PWM Digital I/O Pins 6
  • Analog Input Pins 6
  • DC Current per I/O Pin 20 mA
  • DC Current for 3.3V Pin 50 mA
  • Flash Memory 32 KB (ATmega328P) of which 0.5 KB used by bootloader
  • SRAM 2 KB (ATmega328P)
  • EEPROM 1 KB (ATmega328P)
  • Clock Speed 16 MHz
  • LED_BUILTIN 13
  • Length 68.6 mm
  • Width 53.4 mm
  • Weight 25 g



Visit the store
